Epoxy coating is a crucial aspect when it comes to thermistors, especially in applications where thermal cycling is a common occurrence. As a supplier of epoxy coated thermistors, I've witnessed firsthand how epoxy coatings interact with thermal cycling and the implications this has for the performance and longevity of our products.
Understanding Thermal Cycling
Thermal cycling refers to the repeated process of heating and cooling a material or a device. In the context of thermistors, this can happen in various environments. For instance, in automotive applications, thermistors used in engine temperature monitoring systems are exposed to significant temperature variations as the engine starts, runs, and then cools down. Similarly, in HVAC systems, thermistors experience thermal cycling as the system switches between heating and cooling modes.
The temperature changes during thermal cycling can range from a few degrees to several hundred degrees Celsius, depending on the application. These rapid and repeated temperature fluctuations put stress on the thermistor and its coating.
How Epoxy Coating Handles Thermal Cycling
Thermal Expansion and Contraction
One of the primary challenges during thermal cycling is the difference in thermal expansion coefficients between the thermistor element and the epoxy coating. Different materials expand and contract at different rates when exposed to temperature changes. If the epoxy coating and the thermistor element have significantly different thermal expansion coefficients, it can lead to internal stresses within the thermistor assembly.
Epoxy coatings are carefully formulated to have a thermal expansion coefficient that is as close as possible to that of the thermistor element. This helps to minimize the stress caused by thermal expansion and contraction. When the temperature rises, both the thermistor and the epoxy coating expand at a similar rate, reducing the likelihood of cracking or delamination of the coating.
Adhesion and Bonding
Good adhesion between the epoxy coating and the thermistor element is essential for withstanding thermal cycling. The epoxy coating must adhere firmly to the thermistor to prevent moisture ingress and protect the sensitive thermistor material. During thermal cycling, the repeated expansion and contraction can test the strength of this bond.
High - quality epoxy coatings are designed to form a strong chemical bond with the thermistor surface. This bond is not only strong but also flexible enough to accommodate the small movements caused by thermal cycling. Additionally, surface preparation techniques are employed before applying the epoxy coating to ensure optimal adhesion. This may include cleaning the thermistor surface to remove any contaminants that could weaken the bond.
Insulation and Electrical Performance
The epoxy coating also serves as an electrical insulator for the thermistor. During thermal cycling, it is crucial that the insulation properties of the coating remain stable. Temperature changes can affect the electrical conductivity of the coating, which could potentially lead to short - circuits or inaccurate temperature measurements.
Epoxy coatings with high dielectric strength are used to ensure reliable electrical insulation. These coatings are formulated to maintain their electrical properties over a wide temperature range. This means that even during thermal cycling, the thermistor can accurately measure temperature without interference from electrical leakage.
Applications and the Impact of Thermal Cycling on Epoxy Coated Thermistors
Automotive Applications
In the automotive industry, epoxy coated thermistors are used in a variety of applications, such as engine coolant temperature sensors, intake air temperature sensors, and cabin temperature sensors. These sensors are exposed to extreme thermal cycling conditions. For example, the engine coolant temperature sensor experiences rapid temperature changes as the engine warms up from a cold start to operating temperature and then cools down when the engine is turned off.
The epoxy coating on these thermistors must be able to withstand these harsh conditions to ensure accurate temperature measurement. A failure in the coating due to thermal cycling could lead to incorrect temperature readings, which could in turn affect engine performance and fuel efficiency.
Industrial Applications
In industrial settings, thermistors are used in processes where precise temperature control is required. For example, in chemical manufacturing, thermistors are used to monitor the temperature of reaction vessels. These vessels can experience significant thermal cycling as the chemical reactions progress and the system is heated and cooled.
Epoxy coated thermistors in industrial applications need to be highly reliable. The epoxy coating protects the thermistor from the harsh chemical environment as well as the thermal cycling. Any degradation of the coating due to thermal cycling could expose the thermistor to chemicals, leading to corrosion and inaccurate temperature measurements.
Our Product Range and Thermal Cycling Resistance
We offer a wide range of epoxy coated thermistors, each designed to meet the specific requirements of different applications. For example, our High Precision 10Kohm NTC Thermistor Temperature Sensor is suitable for applications where high accuracy is required. The epoxy coating on this thermistor is carefully selected and formulated to provide excellent thermal cycling resistance, ensuring accurate temperature measurements over a long service life.

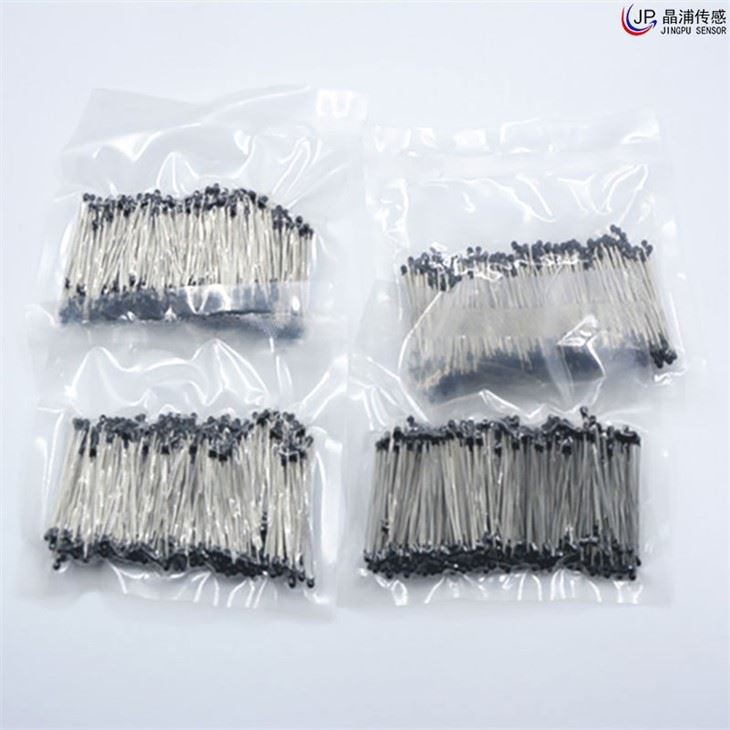

Our Epoxy Coating NTC Thermistor is another product that has been optimized for thermal cycling. It is designed to withstand repeated temperature changes without compromising its performance. This makes it ideal for applications in harsh environments where thermal cycling is common.
The 100K Thermistor Fire Alarm Temperature Sensor is specifically designed for fire alarm systems. In these systems, the thermistor may be exposed to sudden and extreme temperature changes during a fire event. The epoxy coating on this thermistor provides reliable protection and ensures that the sensor can accurately detect temperature changes even under thermal cycling conditions.
Contact Us for Your Epoxy Coated Thermistor Needs
If you are in the market for high - quality epoxy coated thermistors that can handle thermal cycling, we are here to help. Our team of experts can provide you with detailed information about our products and assist you in selecting the right thermistor for your application. Whether you are in the automotive, industrial, or any other industry, we have the solutions to meet your temperature sensing needs. Contact us today to start a procurement discussion and find out how our epoxy coated thermistors can enhance the performance and reliability of your systems.
References
- Smith, J. (2018). "Thermal Cycling Effects on Electronic Components." Journal of Electronic Materials, 47(3), 156 - 162.
- Johnson, A. (2019). "Epoxy Coatings for Electronic Devices: Properties and Applications." Advances in Polymer Science, 234, 78 - 92.
- Brown, C. (2020). "Automotive Sensor Technology: Challenges and Solutions." Automotive Engineering Review, 56(2), 34 - 41.
