DS18B20 Digital Temperature Sensor
Product Description:
DS18B20 is one common digital temperature sensor. Its output is digital signal. Small volume, a strong anti-interference ability, fairly precise. Easily wired. The DS18B20 digital temperature sensor assembly can be more useful when you need to measure something far away, underwater or under the ground
Accuracy: ±1°C
Measurement temperature range: -55°C - +125°C (-67°F - +257°F)
Stainless steel tubesize: Approx.6.0mm(Diameter)
Power supply range:3.0V-5.5V/DC
The stainless steel tube inside be filled in the epoxy
Features：
Comply with RoHS standard
Digital signal output
Operating temperature range: -20℃~+80℃
Stainless steel tube Φ6*50mm

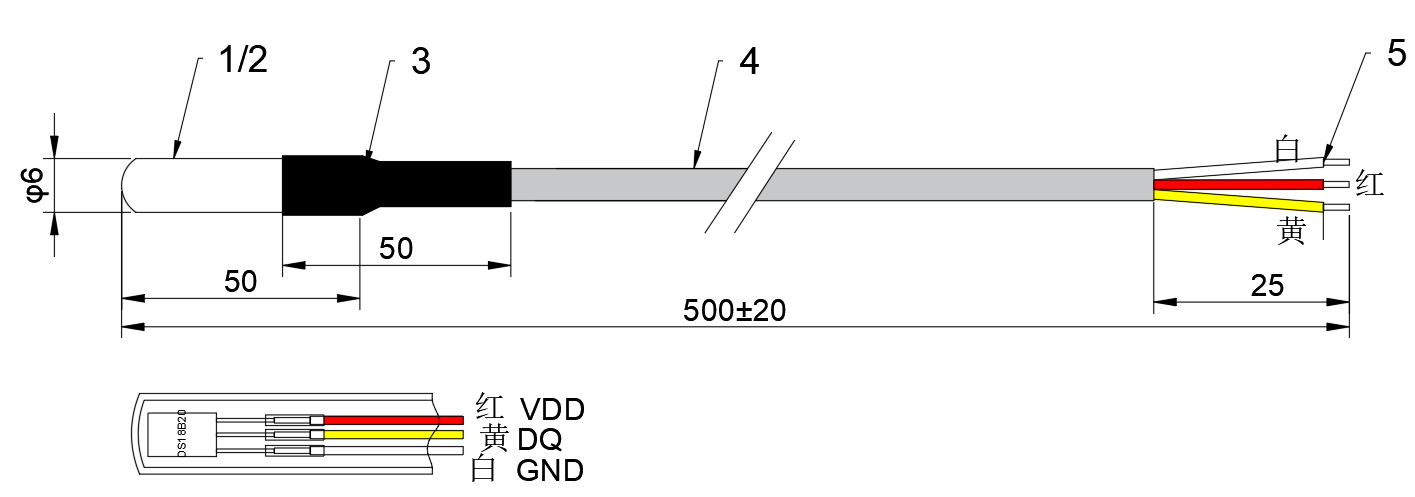

Structure and Dimensions：(unit: mm)
|
NO. |
Name |
Material Specification |
QTY. |
Remarks |
|
1 |
Component |
DS18B20 |
1 |
/ |
|
2 |
Probe |
SUSφ6*50 |
1 |
/ |
|
3 |
Tube |
Double wall heat shrinkable sleeve |
1 |
black |
|
4 |
wire |
PVC 26AWG*3C(red/yellow/white)Round sheathed wire |
1 |
Gray |
|
5 |
Stripped |
Tinned |
3 |
Application：
Freezer
Grain elevator
Storage tank
Telecommunications room
Cable trunking
HVAC systems
Cold chain logistics
Industrial systems
Thermostat controls system
In order to offer you the right model for this type of product, please provide the necessary information as follows.:
1. Application of the product: ______
2. The operating temperature range: ______℃ to ______℃
3. Working environment of this product: ______
4. R25℃:______, B25/50℃ or B25/85℃：______
5. Wire Specification:______
6. The dimension and the drawing of your target product:______
