Thin Film Temperature Sensor
Product Description:
Thin Film NTC Thermistor is a kind of thin film NTC thermistor, of which the width is 4.5mm, the total length is 50mm, the total thickness is max 0.6mm. The parameters are 10KΩ 3435K,10KΩ 3977K.
A thin-film NTC (Negative Temperature Coefficient) thermistor is a type of temperature sensor that is constructed using a thin-film deposition process. It consists of a thin layer of temperature-sensitive material, typically a metal oxide, deposited onto a substrate, which is often made of ceramic or glass.
The thin film is precisely patterned into a specific shape or structure to optimize its temperature sensitivity and response characteristics. This patterning process allows for precise control over the dimensions and properties of the thermistor, ensuring accurate temperature measurements.
The temperature-sensitive material used in a thin-film NTC thermistor exhibits a negative temperature coefficient of resistance, meaning that its electrical resistance decreases as the temperature increases. This characteristic is the basis for its temperature sensing capability. By measuring the resistance of the thermistor, the temperature can be determined.
Thin-film NTC thermistors offer several advantages compared to other types of thermistors. Due to their thin structure, they have excellent thermal conductivity and low thermal mass, allowing them to respond rapidly to changes in temperature. This quick response time makes them suitable for applications requiring fast temperature sensing.
Furthermore, the thin-film construction enables miniaturization, making them ideal for space-constrained applications. They can be integrated into compact electronic devices, medical sensors, and other small-scale systems where size is a critical factor.
The manufacturing process used to create thin-film NTC thermistors ensures high accuracy and repeatability in temperature measurements. The thin-film deposition technique allows for precise control over the deposition parameters, resulting in thermistors with consistent properties and reliable performance.
Thin-film NTC thermistors find applications in various industries, including automotive, aerospace, consumer electronics, medical devices, and industrial systems. They are commonly used for temperature sensing, temperature compensation, and temperature control purposes.
Overall, thin-film NTC thermistors provide an accurate, compact, and fast-responding solution for temperature measurement in a wide range of applications.
Features：
Width of film: 4.5mm
Length of film: 50mm
The operating temperature range is -40℃~100℃
Fast response
Thin film
Accuracy of resistance: ±1%,±2%,±3%,±5%.
Wide Application Range: Perfect for printers, battery packs, computers, home appliances, and more-ensuring safe operation by preventing overheating and enhancing energy efficiency.
Dual Beta Value Options: Choose B=3435K for broad-range sensitivity or B=3977K for steeper thermal response curves, tailored to your system's needs.
Multiple Tolerance Levels: Select from ±1%, ±2%, ±3%, or ±5% resistance tolerance to balance precision and cost-effectiveness for your project.
Thin Film Technology: Enjoy faster response times, superior stability, and compact design compared to traditional thermistors-ideal for space-constrained applications.
Robust Performance: Built to withstand harsh environments, ensuring durability in high-vibration or fluctuating temperature conditions.
Application:
Home appliances, printers, battery packs, and computers.
Structure and Dimension：

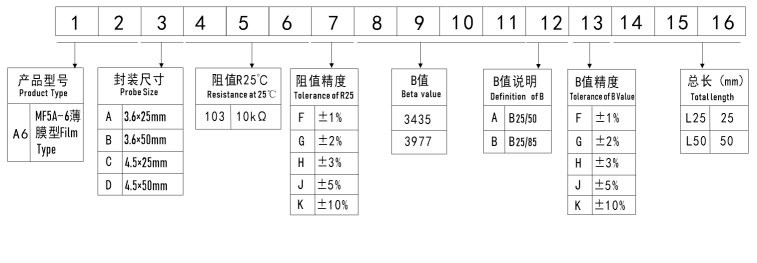

Part Number Code:
Electrical Specification:
Why Choose Our NTC Thermistors?
Whether you're safeguarding lithium-ion battery packs from thermal runaway, fine-tuning HVAC systems, or optimizing printer component longevity, our thermistors provide the accuracy and adaptability your designs demand. With customizable beta values and tolerance grades, you gain the flexibility to match exact specifications while maintaining cost efficiency.
