Hefei Jingpu Sensor Technology Co., Ltd. is one of the leading manufacturers and suppliers of automotive seat heater temp sensor in China, featured by quality products and low price. If you're going to buy discount automotive seat heater temp sensor made in China, welcome to get quotation from our factory. We also accept customized orders.
Brief Instruction：

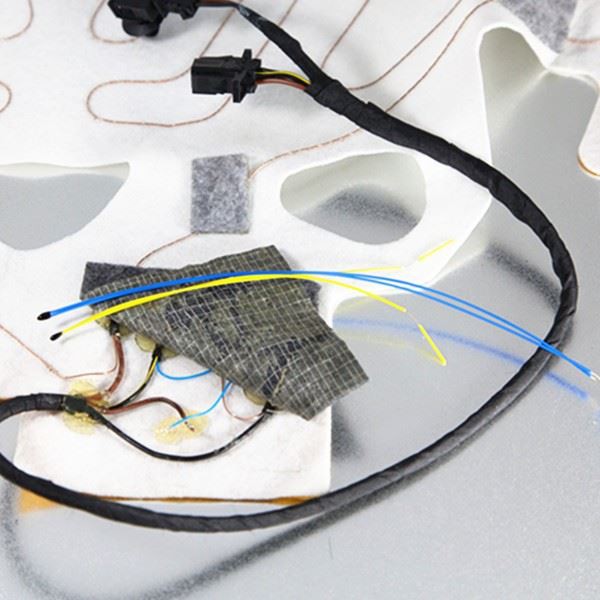

Generally FEP wire, the color blue, yellow, green, etc. Its resistance value R25℃=5kΩ&8kΩ&10kΩ，B25/85=3988k&B25/85=3990k. This seat heater thermistor sensor mainly used for temperature monitoring in the automotive seat heater.
Features：
Comply for RoHS standard
Wide Operating temperature range: -40℃~125℃
Application：
Automotive Seat heater
Part Number Code：
Structure and Dimensions：
Product picture：
Standard packing (inner packing): 500pcs/polybag
Operation Notice
1.Application：Temperature measure and control；
2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3.Avoid excessive heat shock,The hot air blow shoul d beat least 30mm to the probe in case heat shrink protection tube need to be attached.
4.Storage Temperature -10℃～40℃，≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
