NTC Thermistor 10K Epoxy coated tolerance ±1% B-3950K, wire length 820mm
Products Description
This product is NTC Thermistor 10K Epoxy coated tolerance ±1% B-3950K, wire length 820mm, it is used for temperature measurement in the battery power. It's manufacturered by Hefei Jingpu Sensor Technology Co.,Ltd.
Features
Possible to affix using a fasten scew and to perform stable temperature detection of the mounting surface
Can be used for a wide temperature range (-40℃ to +125℃)
Can be installed in vehicles
Fast response time
RoHS Certification
Specifications
| Thermistor | Resin dipping multilayer element type |
| Wires | AWG26 (Sn-plated 0.16mmx7) parallel cable with polyethylene (heat proof 125℃) |
| Wire tip | Wire strips, crimp terminals, and connectors are available |
| Operating temperature range | -40℃ to +125℃ |
| Heating time constant | 6s max. (in still oil) |
| Heat dissipation constant | 3mW/℃ (in still air) |
Characteristics Specification
| B constant | Resistance value | Overall length dimension | Wire tip |
| B25/85: 3950K±3% | R25: 10kΩ±1% | 820±10mm | Strip wire |
| B25/50: 3950K±1% | R25: 15kΩ±1% | 820±10mm | Strip wire |
| B25/50: 3950K±3% | R25: 50kΩ±3% | 820±10mm | Strip wire |
Contact us for other nominal resistance values and B constants
Contact us for other wire length dimensions and tolerance. (Corresponding wire length range: 150 to 1000mm)
Constact us for other tip processing
NTC Thermistor 10K Epoxy coated tolerance ±1% B-3950K, wire length 820mm
Application
The NTC Thermistor 10K Epoxy coated tolerance ±1% B-3950K, wire length 820mm finds application in a wide range of industries and projects, including but not limited to:
Temperature detection (inverters for solar power generation and projectors)
Substrate temperature detection (converters for HEVs and EVs)

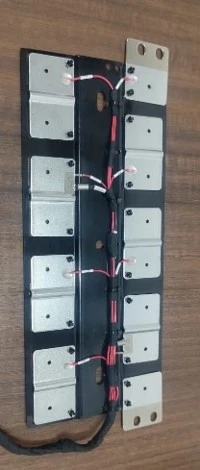

Temperature measurement in EV power batteries CCS plates

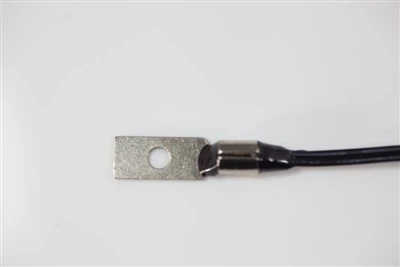

Product image
