Hefei Jingpu Sensor Technology Co., Ltd. is one of the leading manufacturers and suppliers of ntc thermistor 10k 3435 ip68 waterproof temperature sensor 100/200/300mm length in China, featured by quality products and low price. If you're going to buy discount ntc thermistor 10k 3435 ip68 waterproof temperature sensor 100/200/300mm length made in China, welcome to get quotation from our factory. We also accept customized orders.
NTC Thermistor 10K 3435 IP68 Waterproof temperature sensor 100/200/300mm length
Products Description
This product is NTC Thermistor 10K 3435 IP68 Waterproof temperature sensor 100/200/300mm length. It's manufactured by Hefei Jingpu Sensor Technology Co.,Ltd.
Features
Temperature measurement
Wide temperature range
Fast response time
Operating temperature range: -20~105ºC /-40~150ºC
RoHS Certification
Product technical Parameters
| Storage conditions | -20T70℃ |
| Operating range | -50T105℃ |

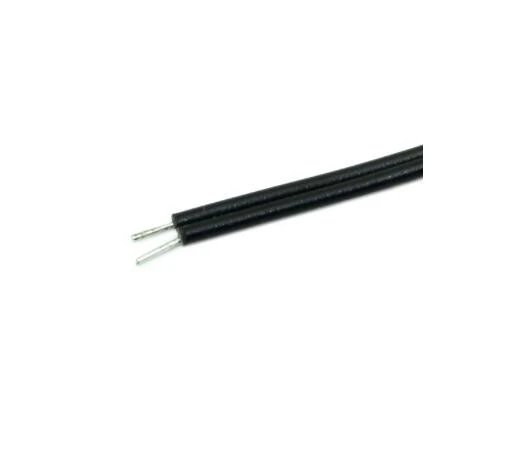

| Connections | Stripped ends, dimension 5±1mm |
| Sensor | NTC 10 kΩ±1% at 25℃ Beta 3435K |
| Dissipation factor (in air) | approx. 7 mW/℃ |
| Thermal constant over time (in water) | approx. 4.5 s |
| Cable |
Two-wire with double sheath, AWG22, tinned copper with electrical resistance≤63 Ω/km Insulation: TPE specific for immersion in water on outer sheath, PP/Co inside on wires, OD 3.5mm max. |
| Sensitive element index of protection | IP67 |
| Sensitive element housing | AISI 316 steel diameter 4 mm - L=30 mm |
| Classification according to protection against electric shock (sensitive element&cable) | Basic insulation for 250Vac; |
| Category of resistance to heat and fire | Flame retardant |

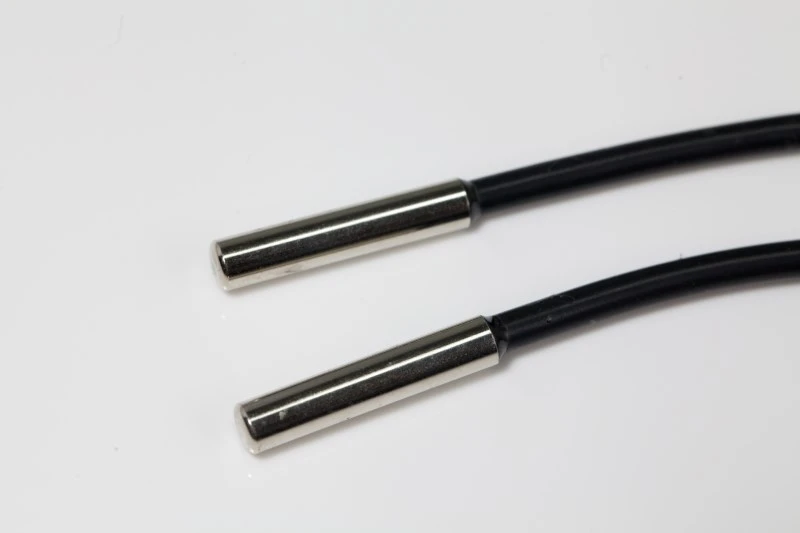

Product image
