Hefei Jingpu Sensor Technology Co., Ltd. is one of the leading manufacturers and suppliers of enamelled wire ntc thermistor in China, featured by quality products and low price. If you're going to buy discount enamelled wire ntc thermistor made in China, welcome to get quotation from our factory. We also accept customized orders.
Brief Instruction：
Resistor products that are extremely sensitive to temperature changes. When the ambient temperature changes, the resistance of the thermistor changes greatly and basically shows a linear relationship with the temperature. Therefore, the temperature can be detected by measuring the change in resistance. There are two types of thermistors, NTC and PTC. The PTC thermistor means that the resistance value of the resistance increases when the ambient temperature increases, and the resistance value decreases when the ambient temperature decreases. The NTC thermistor means that when the ambient temperature increases or decreases, the resistance value increases, the resistance value of the resistor changes in the opposite direction.
Enamelled Wire NTC Thermistor be consist of enamelled wire, NTC chip and epoxy resin.
The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K. The enamelled wire NTC thermistor apply for the Electronic clinical thermometer, Electrical medical device and temperature measurement in Battery.
Features：
Comply for RoHS standard
miniature design
Fast thermal response time
Excellent long-term stability
Options
Alternative lead lengths on request
Enamelled Wire
Application：
electronic clinical thermometer
Electric medical device
Temperature measurement in Battery
Part Number Code：
Structure and Dimensions：

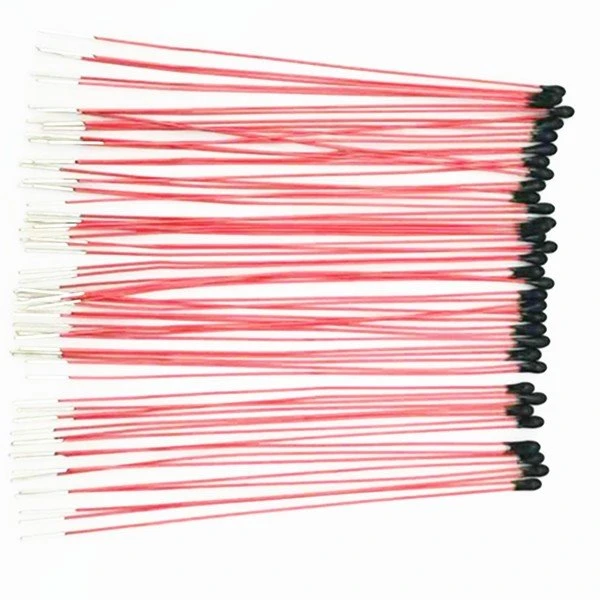

product picture：
Standard packing (inner packing): 500pcs/polybag
