NTC 8 Kohm Thermistor sensor 175mm orange temperature sensor cable
Products Description
This item is NTC 8 Kohm Thermistor sensor 175mm orange temperature sensor cable. It is well-known for accurate dimensions, exceptional finish and anti-corrosive with supreme quality. All NTC 8 Kohm thermistor sensor 175mm length are created using optimum quality raw materials and most modern technology to delivery product as per patrons' requirement. NTC 8 Kohm Thermistor sensor 175mm orange temperature sensor cable, which take NTC chip as the core and take different encapsulated forms, are widely used in various medical temperature probe.
Features
NTC 8 Kohm Thermistor sensor 175mm orange temperature sensor cable
Advance technology: 175mm temperature sensor NTC thermistors adopts sensitive and reliable NTC thermistor and connected by PTFE wire, 0.175 meter lead wire length, available for remotr temperature measuring and controlling
Wide measuring range: NTC 8 Kohm Thermistor sensor 175mm orange temperature sensor cable is able to tolerate the widest measuring range
Operating temperature range: -20~105ºC /-40~150ºC
Fast response time
Good stability
High quality and environmental temperature probe, which is waterproof, moisture-proof and anti-rust.
Wide application
RoHS Certification
Application
The NTC 8 Kohm Thermistor sensor 175mm orange temperature sensor cable in a wide range of industries and projects, including but not limited to:
Heating cushions
Clothes
Automotive parts
Automotive seat heating system
Cushion heating system
temperature monitoring
temperature measurement

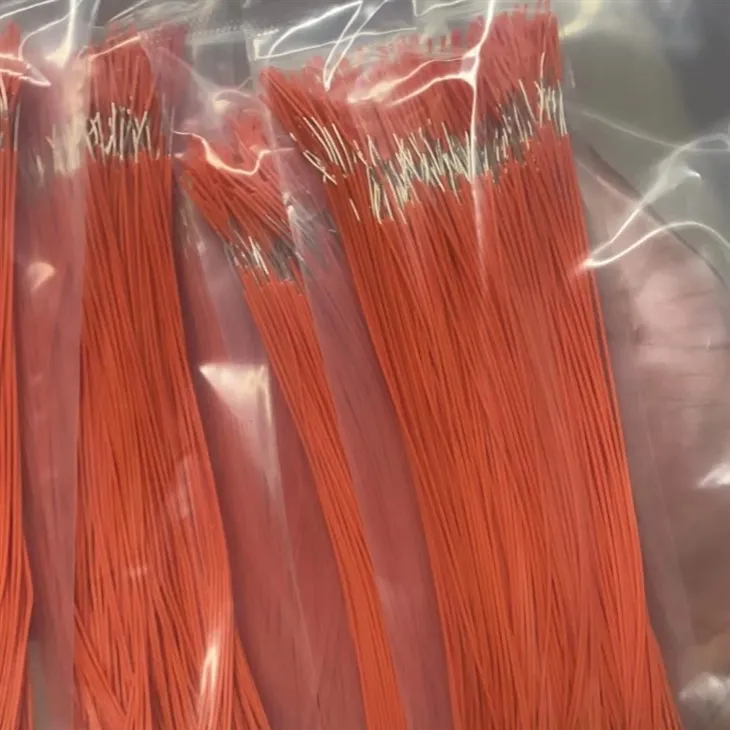

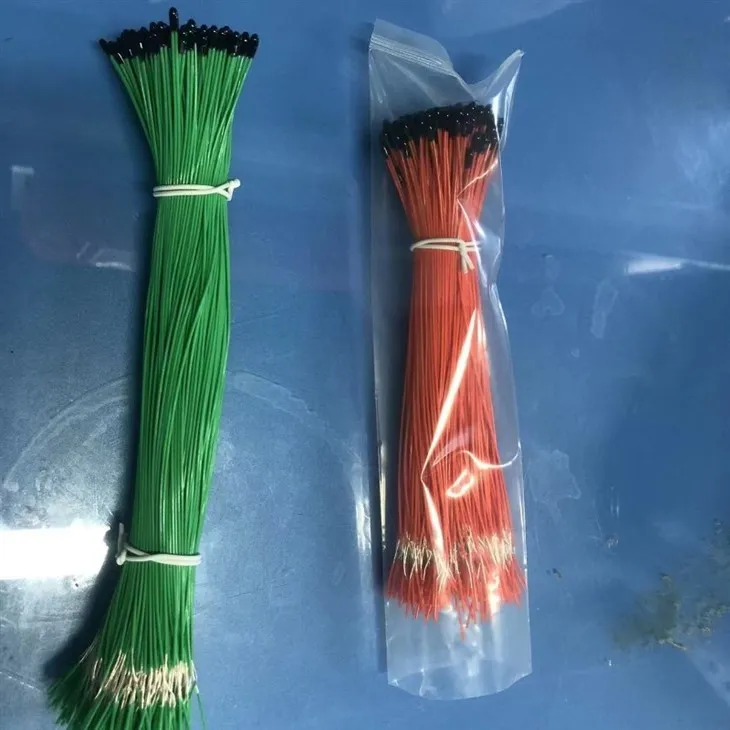

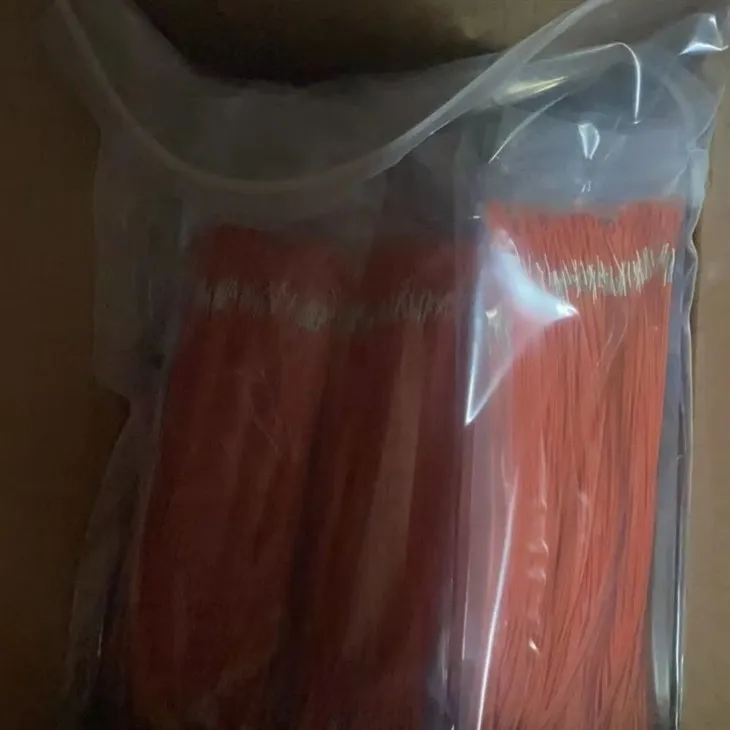

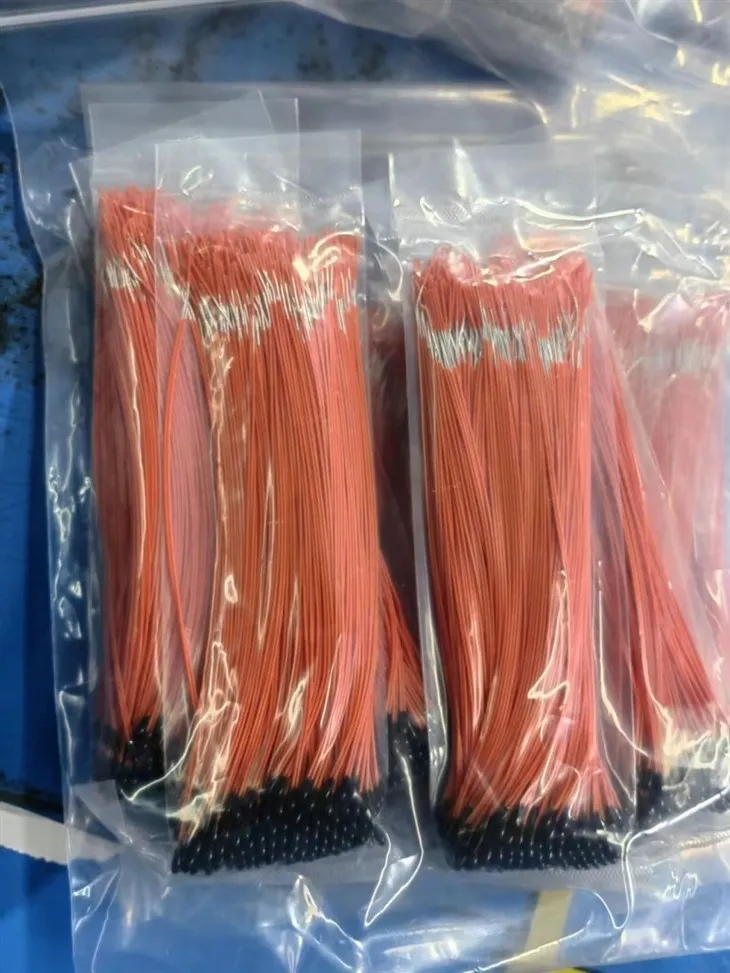

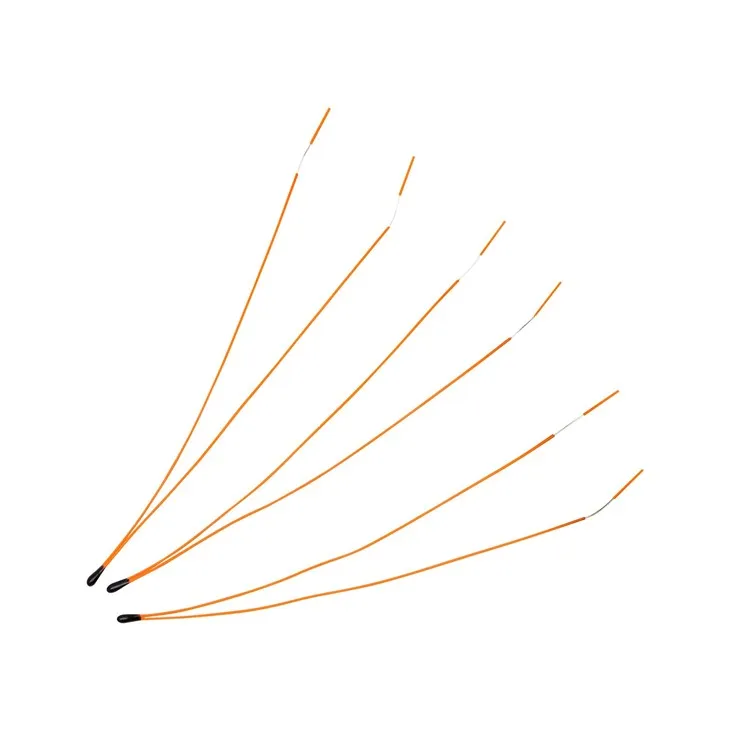

Product image
Mechanical Properties:
Insulation non-aged
| Elongation | ≥200% |
| Tensile strength | ≥1,76 kgf/mm² |
Insulation aged
Agring method: IEC 60068--1 / 60068-2-2 / 60068-2-38
| Elongation | ≥75% of the result of non aged |
| Tensile strength | ≥75% of the result of non aged |
Voltage withstand>AC 750V 1mA 0,1sec.
Insulation resistance>100Mohm, DC 500V 0,1sec
Thermal time constant in air:
Requirement: 10 to 18s
Test method: IEC 60539-1 (2008)
In temp of 25℃ the thermistor is heated by current flowing from the DC power supply then testing the time in which thermistor resistance changes from R85℃ to R47.1℃
Dissipation factor in air:
Requirement: >3mW/℃
Test meothd: IEC 60539-1 (2008)
In temp of 25℃ the thermistor is heated by current flowing from the DC power supply then testing the time in which thermistor resistance changes from R85℃ to R47.1℃.
NTC 8 Kohm Thermistor sensor 175mm orange temperature sensor cable
NTC 8 Kohm Thermistor sensor 175mm orange temperature sensor cable starts out as a chip that is then encapsulated in either glass or epoxy.
Depending on the different application, this epoxy bead NTC thermistor is then potted in a metal or plastic housing that is customized according to very specific requirements.
NTC thermistor change resistance with a change in temperature. They do not amplify, rectify, polarize or generate a signal. The thermistor temperature may be changed by the surround temperature or by self-heating the thermistor by passing a current through it.
NTC chip:
Rmax at -40℃：293 kohm
B-value: (B25/100)=3988K ±3%
R at 25℃： 8000 ohm ±5%
Resistance tolerance absolute maximum rating: R tolerance ＜±4% within 30℃ to 40℃
Each shipment shall contain 5 thermistors (marked) which is calibrated against following temperatures:
| R at 25℃ | 8000 ohm ±4.0% |
| R at 40℃ | 4285 ohm ±4.0% |
| R at 35℃ | 5245 ohm ±4.0% |
