Hefei Jingpu Sensor Technology Co., Ltd. is one of the leading manufacturers and suppliers of glass encapsulated thermistor thermal sensor 28mm length in China, featured by quality products and low price. If you're going to buy discount glass encapsulated thermistor thermal sensor 28mm length made in China, welcome to get quotation from our factory. We also accept customized orders.
Glass encapsulated Thermistor Thermal Sensor 28mm length
Products Description
The glass encapsulated thermistor thermal sensor 28mm length is made of glass bead, NTC element and dumet wire, which is the key spare part of this temperature sensor. It is a thermal sensor in a DO35 package. Similar to the BT thermistor, it is highly reliable and offers a wide operating range of -50℃ to 250℃. It is primarily used in home electric appliances and features a competitive price for full-automated manufacturing system.
Features
Human body temperature measurement
Resusable
Tolerance:(25~45)℃±0.1℃
Operating temperature range: -20~105ºC /-40~150ºC
RoHS Certification
| Temperature (℃) | Resistance value |
| -50 | 137.9 |
| -40 | 81.02 |
| -30 | 48.93 |
| -20 | 30.56 |
| -10 | 19.65 |
| 0 | 12.96 |
| 10 | 8.779 |
| 20 | 6.080 |
| 30 | 4.296 |
Application
Glass encapsulated NTC thermistor, heat-resistant and highly stable
Coating of glass body and leads for electrical insulation
For temperature measurement upto 250℃
Very short response time
Small dimensions
Leads: dumet wires (copper-clad FeNi)
Consumer electronics and gadgets

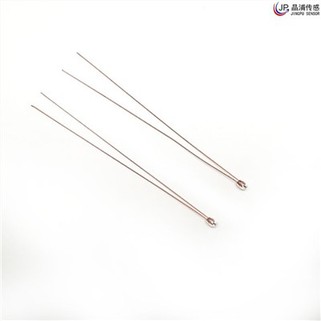

Product image
R25: Rated zero-power resistance value at 25℃
Time when thermistor temperature reaches 63.2% of the temperature difference, the value is measured in the air
上方是模板内容,下方是编辑器原内容,编辑好请删除原内容.
NTC thermistor Sensor for Temperature Measurement
Product Description
FAQ:
Which thermistor shapes are available?
Thermistor come in a variety of shapes-disk, chip, bead, or rod, and can be surface mounted or embedded in a system. They can be encapsulated in epoxy resin, glass, baked-on phenolic, or painted. The best shape often depends on what material is being monitored, such as a solid, liquid, or gas.
What about having a look at sample first?
The quality of ours is as good as that of many other suppliers, while our prices are not high as theirs. By the way, which items are you interested in?
