Temperature Monitoring Sensor NTC thermistor 2.163K
Products Description
This product is Temperature Monitoring Sensor NTC thermistor 2.163K, which is the key spare part of this temperature sensor. The Skin temperature sensor is to be used for routine monitoring a patient's skin surface temperature.
Features
Human body surface temperature measurement
Resusable
Tolerance:(25~45)℃±0.1℃
Operating temperature range: -20~105ºC /-40~150ºC
Sensitvity
Small size
Low thermal time constant
Wide temperature range
Versatility
Application
Due to their fast response and high sensitivity, NTC thermistors are commonly used in applications like temperature control systems, temperature compensation, temperature monitoring, and thermal protection in electronic devices and industrial equipment.
Human body surface temperature measurement
The adult skin sensor consists of a temperature-sensing wire set with an adhesive probe cover that facilitates application to the paitent's skin surface. The temperature monitoring sensor located at the distal end of the wire is affixed to the center of the disk-shaped foam pad, which has a reflective backing and an adhesive layer to hold the sensor in place.

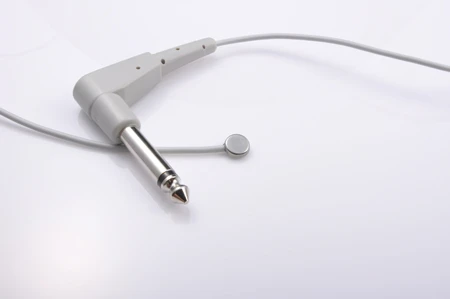

Product image
Direction for Use
1. Prepare the skin for adhesive pad by removing body oils and hair
2. Verify the compatibility of the temp probe, interface cable, and patient monitor before use.
3. Remove the skin temperature sensor from its package
4. Peel off release liner and apply for sensor with probe cover to patient's skin
5. Connect the temperature probe to the appropriate reusable cable from Jingpu. Connector the cable to the temperature monitor. Secure the cable using the drape clip.
6. Follow the directions for use of the patient temperature monitor instrument.
7. When temperature monitoring is completed, carefully remove adhesive cover from patient's skin.
8. Disconnect the probe (at the connector) and discard the probe. To disconnect, grasp both connectors firmly and pull. Do not pull on cable or wire
9. Dispose of probe according to facility protocol.
Operation Specifications
Rated output range: 25℃ to 45℃ Celsius
The reference body site is the skin surface temperature.
The measuring site are intect skin. Accurate to +/-0.1℃
Time response:
The temperature probe has a direct mode of operation
The maximum heating transient time is 12 seconds
The maximum cooling transient time is 10 seconds
