955mm Length NTC thermistor Sensor Brass Temperature probe
Products Description
This product is made of bare-chip NTC thermistor, which is the key spare part of this temperature sensor. It consists of brass tube, black XLPE insulated wire and tinned wire. Temperature measurement and monitoring. Jingpu has the temp sensor for-or will partner with you to design-a temp sensor to meet your specific needs. We have solved the most challenging application requirements that temperature sensor face: moisture ingression, thermal cycling stability, accuracy, size, response time, and overall cost.
Features
Home appliances temperature measurement
Brass tube
Tolerance: ±1%
Operating temperature range: -20~105ºC /-40~150ºC
RoHS Certification
Customized Wire length
Fast response time
Product Parametes
955mm Length NTC thermistor Sensor Brass Temperature probe:
| Item name | Code | Test condition | Performance requirement |
| Rated resistance | R25℃ | +25℃±0.05℃ | 10±1.056% KΩ |
| Beta value | B25/85 |
+25℃±0.05℃ +85℃±0.05℃ |
3977±1%K |
| Response time | / | In still air | Approx 60 S |
| Dissipation factor | / | In still air | Approx 3.0mW |
| Max. power | Pmax | In still air | No break down |
| Withstand voltage | Hi-pot |
AC1500V 1mA 1s In still air |
No break down |
| Operating temp. range | OTR | In still air | -40~105℃ |

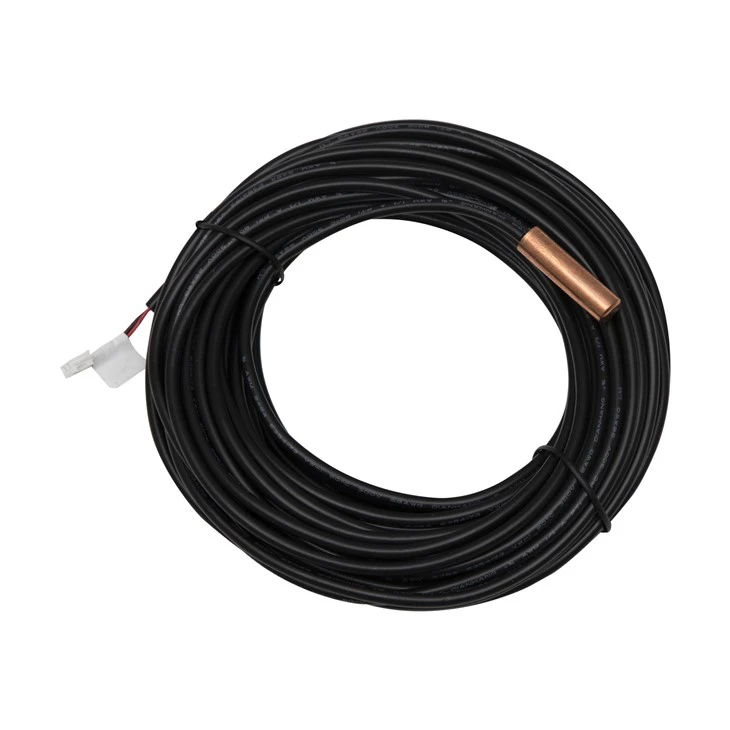

Product image
When do use NTC Thermistor Probes and why it's necessary?
NTC Thermistor probes have been used as far back as 1940 to measure and analyze temperature, but today they are indispensable to everything from home appliances to electric vehicles that require i-ion batteries. They have long been employed to measure liquid levels and temperature in industries that extend from automotive electronics to medical technology to green energy.
Their applications are endless, and their purpose is significant.
NTC thermistor temperature sensors come in all types of housings including closed end metal tubing, threaded metal tube, and housings with a threaded tip and hex screw.
A thermistor probe is otherwise identified as a bead thermistor manufactured as a bare bead encapsulated with epoxy or glass that is usually potted in a metal or plastic housing with two high temperature insulated wires.
上方是模板内容,下方是编辑器原内容,编辑好请删除原内容.
Temperature VS Resistance Table
