NTC Thermistor 10K Ohm 3984K 2C 24AWG Black
Products Description
This product is made of bare-chip NTC thermistor 10K OHm 3984K, which is the key spare part of this temperature sensor. It consists of brass tube, black XLPE insulated wire 24AWG and tinned wire. Temperature measurement and monitoring. NTC thermistors are usually built as metal oxides ceramic sinters. Manufacturers carefully select for thermistor compostion in order to obtain certain parameters. The most common form of thermistor is a small pearl, few millimeters in diameter, with two connecting wires.
Features
Home appliances temperature measurement
Brass tube
Tolerance: ±1%
Operating temperature range: -20~105ºC /-40~150ºC
RoHS Certification
Customized Wire length
Fast response time in the water and in still air
Product Parametes
NTC Thermistor 10K Ohm 3984K 2C 24AWG Black:
| Item name | Code | Test condition | Performance requirement |
| Rated resistance | R25℃ | +25℃±0.05℃ | 10±1.056% KΩ |
| Beta value | B25/85 |
+25℃±0.05℃ +85℃±0.05℃ |
3984±1%K |
| Response time | / | In flowing water | Approx 13 S |
| Dissipation factor | / | In still air | Approx 3.0mW |
| Max. power | Pmax | In still air | No break down |
| Withstand voltage | Hi-pot |
AC1500V 1mA 1s In still air |
No break down |
| Operating temp. range | OTR | In still air | -40~105℃ |

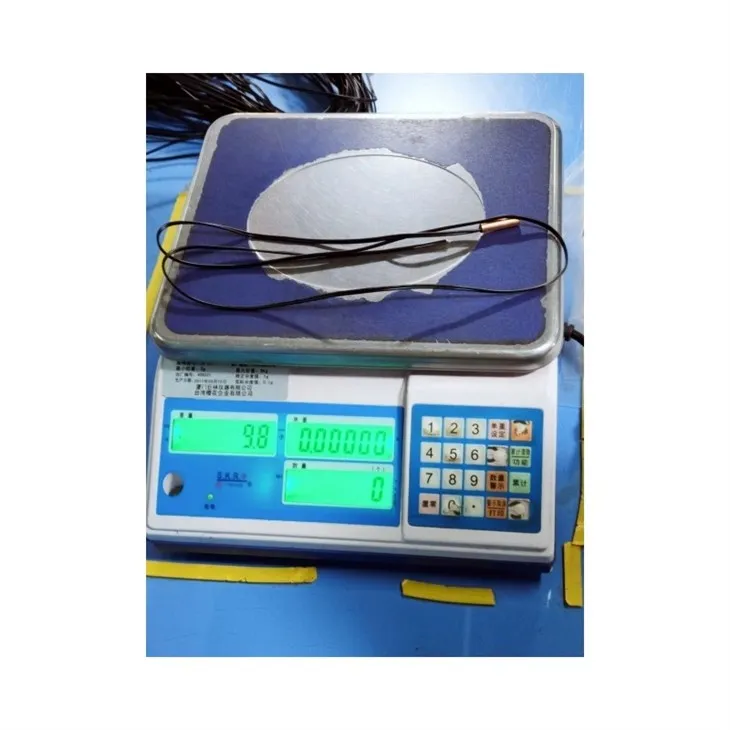

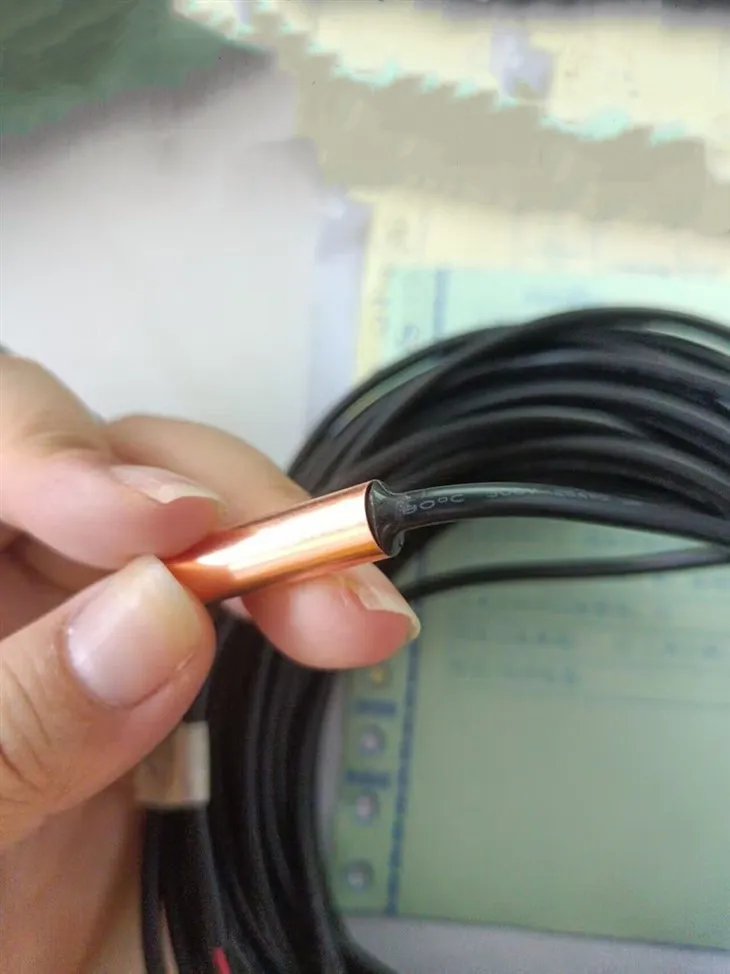

Product image
When do use NTC Thermistor Probes and why it's necessary?
NTC Thermistor probes have been used as far back as 1940 to measure and analyze temperature, but today they are indispensable to everything from home appliances to electric vehicles that require i-ion batteries. They have long been employed to measure liquid levels and temperature in industries that extend from automotive electronics to medical technology to green energy.
Their applications are endless, and their purpose is significant.
NTC thermistor temperature sensors come in all types of housings including closed end metal tubing, threaded metal tube, and housings with a threaded tip and hex screw.
A thermistor probe is otherwise identified as a bead thermistor manufactured as a bare bead encapsulated with epoxy or glass that is usually potted in a metal or plastic housing with two high temperature insulated wires.
上方是模板内容,下方是编辑器原内容,编辑好请删除原内容.
Temperature VS Resistance Table
